How to Make a Solar Power Tree

 Fabrication of solar tree

Solar tree fabrication includes its installation, wiring connections and setting up the load for its run. Fabrication of the solar tree involves the following steps:

⦿ Developing the design of the solar tree structure

⦿ Preparing the foundation base

⦿ Fixing the structure on the foundation base

⦿ Building the solar tree structure and mounting the branches

⦿ Connecting all the solar panel

⦿ Preparing the SLD & Circuit board

⦿ Wiring Connection

⦿ Connecting the load

Developing the design of the solar tree structure:-

        The design of the structure is first developed in Auto CAD to have accuracy and provide ease in developing the system.

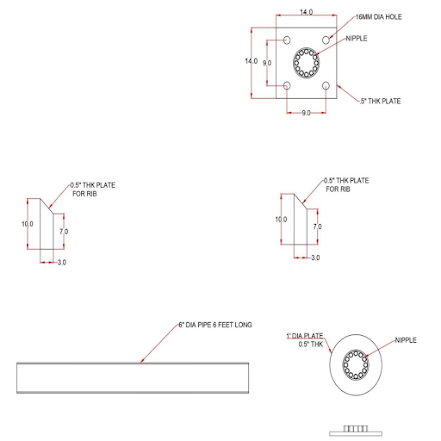

Specification of parts of solar tree:-

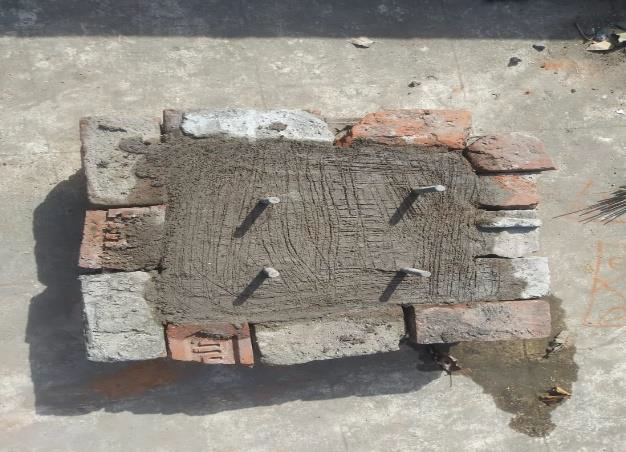

Preparing the foundation base:-

        Base is prepared using grit and sand and is cemented to increase its strength so that it can hold the solar tree firmly. The size of the base is 45 cm* 45 cm and is made in square shape with height 250mm from the ground level.

Fixing the structure on the foundation base:-

        L-type nut and bolts are used for fixing the solar tree structure on to the base so that they remain properly fixed.

Building the solar tree structure & Mounting the branches:-

        Solar tree structure is built using iron in long cylindrical shape of about 6ft tall and is coated with aluminium paint to prevent it from damage. It has been then welded to be fixed on the base. The branches of the solar tree are curved and placed at an angle facing the south so that they do not cast shadow over one another. Structure consists of twelve branches each having one solar module of 10Wp.

Connecting all the solar Panels:-

        Solar panels mounted on the tree are all connected in parallel to get the desired output current from the tree. This is done with the help of the combiner box which has multiple inputs and single output. Output from the individual modules is sent to the combiner box where they are connected in parallel and single output from the combiner box is sent to the charge controller using MC4 connectors.

Preparing the SLD diagram & Circuit Board:-

        The circuit board has been prepared by installing all the components on the board and connecting them as per single line diagram.

This SLD showing circuit board connection

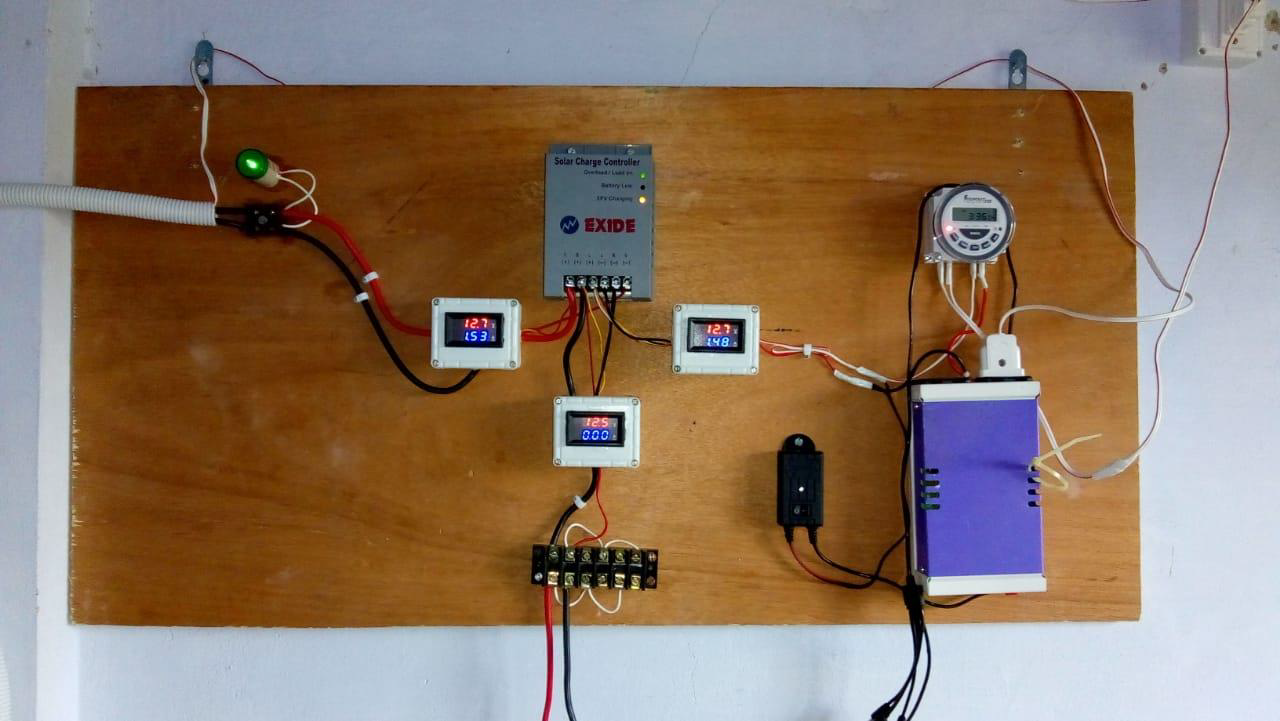

Circuit Board

Wiring Connections :-

After all the components are set up as desired, wiring connection is done based on the wiring diagram on the circuit board as well as within the system, starting from the combiner box fixed on the solar tree structure up to the load.

Wiring connection of the circuit board with working condition

Connecting the load:-

        After all the connection is made in the system, college sign board with the LED flashlight is connected which is to be run through solar power.

SLD Showing complete system connection

System connection as per SLD diagram

Load during run time:-

        The below figure shows the working of the load during its operation.

 This Topic is too long so its divide in to two sections One is component required for make and design of solar tree & another second section contains Fabrication of solar tree, steps of components arrangement and connections of circuit board etc.

Click here 👉 To go to Component required for fabrication & design of solar power tree

🔯    🔯    🔯
